Coupon ✔️ Apache Quick Disconnect Female Pipe Thread Two-Way Sleeve Hydraulic (S704), 1/2 IN x 1/2 IN, 39041400 😍

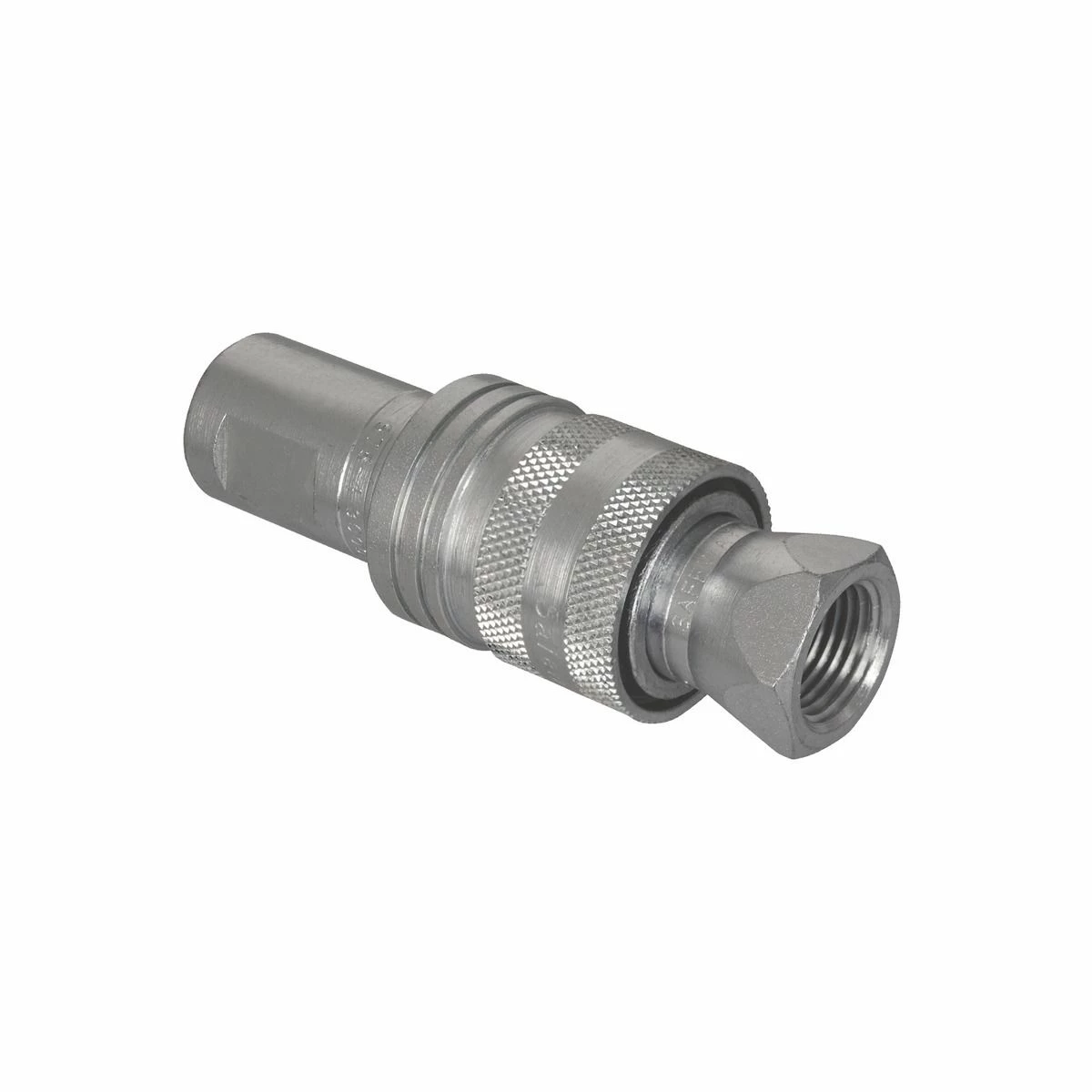

Sets have an ISO 5675 body, and include a S75 coupler and S71 plug combination. The unique internal valving automatically opens the hydraulic circuit after connection, if the system is in operating mode. When mounted to a bulkhead, the two-way double acting sleeve allows one-hand operation under full pressure, and implement break-away. Critical parts are hardened for long service life. Interchangeable with Parker/Pioneer 8200 Series.

FEATURES

• Shielded retainer elimnates flow-checking when used with connect under pressure couplers
• Mates with all standard ISO couplers
• Interchangeable with 1/2″ Parker/Pioneer 8200, Aeroquip FD72, and Snap-tite 68 series couplers
• Meets ISO 5675 performance requirements
• Maximum Temperature: 250 Deg F
• Maximum PSI: 3000
• S70-4
